TL;DR:
A 12x24x2 is not a safe substitute for an 11.25x23.25x2. A standard 12x24x2 measures about 11.375 x 23.375 x 1.75 inches, roughly 1/8 inch wider and longer, and in a tight slot that extra size can bow the frame and let dirty air slip past. Buy the exact size printed on your old filter, or measure the slot first.
Key Takeaways
• An 11.25x23.25x2 measures 11.25 x 23.25 x 1.75 inches; a typical 12x24x2 measures about 11.375 x 23.375 x 1.75 inches. Both are the same depth.
• Swapping up adds only about 4 square inches of face area, under 2%, so there is no filtration gain.
• A filter that is too big leaks just like one that is too small, because a bent frame stops sealing.
• Bypassed air carries dust onto the blower and evaporator coil, raising energy use and repair risk.
• The only true 11.25x23.25x2 equivalent is a filter with the same actual dimensions.
How Much Bigger Is a 12x24x2 Than an 11.25x23.25x2?
A 12x24x2 is about 1/8 inch larger in width and height. Most filters are labeled by nominal size, a rounded number, so a 12x24x2 frame actually measures about 11 3/8 x 23 3/8 x 1 3/4 inches, as this 12x24x2 product page shows. An 11.25x23.25x2 is labeled close to its true size of 11.25 x 23.25 x 1.75 inches.
This is the trap we see with these two sizes. They look almost identical on a shelf, and a filter 1/8 inch too big often still goes in with a firm push. Once the door closes, nobody notices the bowed edge until dust shows up on the coil.
Can I Use a 12x24x2 Instead of an 11.25x23.25x2?
In most homes, no. If your current filter says 11.25x23.25x2, the slot was likely built around that frame, and filter racks don't stretch. A frame you have to push, bend, or crush into place no longer seals.
The exception is a slot that measures close to 12 x 24 inches, where someone may have bought the wrong size years ago. That's why we always measure the slot itself, never just the old filter's label.
Does a 12x24x2 Add Filtering Area?
Not meaningfully. Using Filterbuy's published actual size for the 11.25x23.25x2 and a typical 12x24x2 frame, the face areas are about 262 and 266 square inches (1.82 vs. 1.85 sq ft). That under-2% gain won't change airflow or capture, but the tighter fit can break the seal.
What Happens When a 12x24x2 Is Too Big for the Slot?
An oversized filter usually leaks in one of four ways:
1. The frame bows and lifts an edge off the rack.
2. Corners crush, leaving small openings.
3. The access door won't close flat, pulling in unfiltered room air.
4. The pleats deform and can collapse sooner under blower pressure.
Why Does a Wrong Size Furnace Filter Cause Air Bypass?
Air takes the path of least resistance, so any gap around a filter becomes an unfiltered route into the system. The EPA's Guide to Air Cleaners in the Home says a filter should fit snugly so air can't leak around it, and that you shouldn't bend or crush a filter to make it fit.
The U.S. Department of Energy notes that bypassed air deposits dirt directly on the evaporator coil and weakens its ability to absorb heat. That buildup is behind many of the breakdowns covered in our guide on how air filter replacement prevents HVAC repairs.

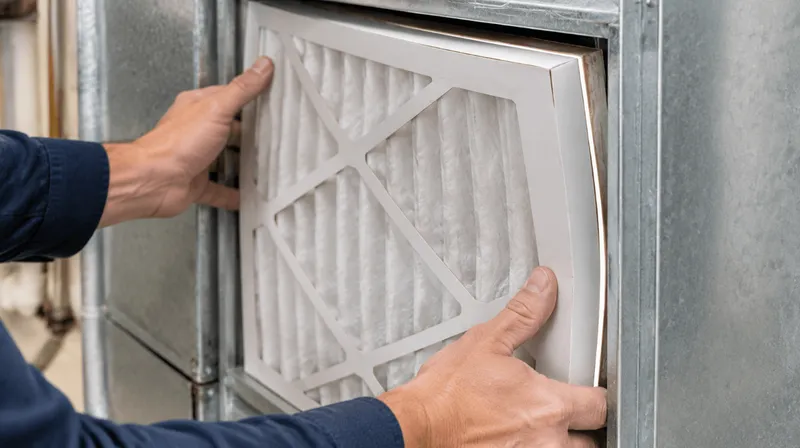

How Do I Confirm the Right Filter Fit?
Measure the slot, not the old label, and dry-fit the filter before closing the door. This is the same order we follow on a service call:
1. Turn the system off at the thermostat.
2. Read the nominal and actual size on the old frame.
3. Measure the slot's width, height, and depth to the nearest 1/8 inch.
4. Slide the new filter in without force, airflow arrow toward the blower.
5. Check for edge gaps and make sure the access door closes fully.
Which Size Does Your Slot Take?
Your inside slot measurements decide it:
• 11.25 to 11.5 inches wide, or 23.25 to 23.5 inches tall: order an 11.25x23.25x2. A 12x24x2 leaves less than 1/8 inch of clearance.
• About 11.5 to 11.75 inches wide and 23.5 to 23.75 inches tall: a 12x24x2 should slide in cleanly.
• Outside these ranges, or the sides disagree: measure again and consider a custom size.
• Under 1.75 inches deep: you need a 1-inch filter instead.
Is an 11.25x23.25x2 Slot Big Enough for Your System?
It comfortably serves systems up to about 2 tons. DOE Building America guidance prefers 200 to 400 feet per minute of air speed across a residential filter, with 500 as the ceiling. Across this filter's 1.82 sq ft face, that works out to about 545 to 910 CFM, or roughly 1.4 to 2.3 tons at 400 CFM per ton. If this is your only return on a larger system, stay at MERV 8 to 11 and have a technician check static pressure.
Where Can I Find an 11.25x23.25x2 Equivalent Filter?
The only true equivalent is a filter with the same actual dimensions, because no standard size substitutes cleanly. Many hardware stores don't stock this non-standard size.
Our rule of thumb: if a non-standard size is printed on the old frame, assume it was chosen on purpose. Order that exact size or a custom filter, never the nearest standard size.
Filterbuy, a U.S.-based air filter manufacturer that makes and ships HVAC and furnace filters in more than 600 standard and custom sizes, lists the 11.25x23.25x2 at an actual size of 11.25 x 23.25 x 1.75 inches in MERV 8, 11, and 13. MERV 8 to 11 suits most homes, and the EPA recommends MERV 13 or the highest rating your system can handle. Our guide to choosing a MERV rating for a 2-inch filter shows how to check your blower's headroom.
"When a homeowner tells me their new filter went in a little tight, that's the first thing I check. Tight isn't the same as snug. If you had to push it, it isn't sealing."
Essential Resources on 11.25x23.25x2 Air Filters
These seven resources cover sizing, installation, MERV choice, and upkeep.
1. Confirm the Exact Specs Before You Order
Filterbuy's 11.25x23.25x2 product page lists the actual size as 11.25 x 23.25 x 1.75 inches in MERV 8, 11, and 13.
Source: https://filterbuy.com/air-filters/11-25x23-25x2/
2. Check Federal Guidance on Fit and MERV
The EPA's Guide to Air Cleaners in the Home explains how a furnace filter should fit and which MERV ratings to consider.
Source: https://www.epa.gov/indoor-air-quality-iaq/guide-air-cleaners-home
3. Install and Seal Your Filter Correctly
The DOE Building America installation guide covers sizing, airflow direction, and sealing the access panel, with photos of right and wrong installs.
Source: https://basc.pnnl.gov/resource-guides/proper-installation-furnace-and-air-handler-filters
4. Understand What Each MERV Rating Captures
The DOE Building America High-MERV Filters guide shows capture efficiency by particle size and how filter depth affects airflow resistance.
Source: https://basc.pnnl.gov/resource-guides/high-merv-filters
5. Cut Energy Costs With a Clean Filter
DOE Energy Saver reports that replacing a clogged filter can lower air conditioner energy use by 5% to 15%.
Source: https://www.energy.gov/energysaver/maintaining-your-air-conditioner
6. Go Deeper With the EPA's Technical Guide
The EPA's Air Cleaners and Air Filters in the Home page links both the consumer guide and the longer Residential Air Cleaners technical summary on filter types and performance.
Source: https://www.epa.gov/indoor-air-quality-iaq/air-cleaners-and-air-filters-home
7. See How MERV Choice Affects Energy Use
Lawrence Berkeley National Laboratory's year-long study of 10 homes shows how filters from MERV 6 to MERV 16 affect system pressure and blower energy.
Source: https://eta-publications.lbl.gov/publications/system-effects-high-efficiency
Supporting Statistics
1. HVAC Systems Run Less Than 25% of the Time
The EPA reports that HVAC systems usually run less than 25% of the time during heating and cooling seasons, and filters clean air only while the system runs. Air leaking around the filter wastes that short window.
Source: U.S. EPA, Guide to Air Cleaners in the Home
2. A 2-Inch Filter Has About 35% Less Resistance Than a 1-Inch
DOE Building America data shows a 1-inch MERV 7 filter at 0.20 in. w.c. and a 2-inch MERV 7 at 0.13 in. w.c., both at 300 FPM. Because the filter accounts for 20% to 50% of total system pressure drop, the correct 2-inch size protects airflow.
Source: U.S. DOE Building America Solution Center, High-MERV Filters
3. MERV 10 to 13 Filters Add Less Than 1% to Energy Use
Lawrence Berkeley National Laboratory monitored 10 homes for a year and found MERV 10 to 13 filters changed energy use by less than 1%, while MERV 16 risked increases above 5%. For an 11.25x23.25x2 slot, MERV 8 to 13 is the practical range.
Source: Lawrence Berkeley National Laboratory, System Effects of High Efficiency Filters in Homes
Final Thoughts
A 12x24x2 and an 11.25x23.25x2 differ by only 1/8 inch, but that gap decides whether the filter seals. Sizing up gains almost no filter area and risks bypass, coil buildup, and higher energy use. Match the actual size to your slot and the filter will do its job.
Next Steps
1. Measure your slot's width, height, and depth.
2. Compare those numbers to the filter's actual size, not its label.
3. Order the exact size, or a custom filter if nothing matches.
4. Write the size on the furnace cabinet so you never have to guess.
5. Call a technician if the rack is bent, a filter is jammed, or dust has built up in the blower compartment.
Frequently Asked Questions
Can I put an 11.25x23.25x2 in a 12x24x2 slot?
It will slide in, but it is about 1/8 inch small in each direction, so it can shift and leave edge gaps where air bypasses the filter. If your slot is sized for a 12x24x2, buy a 12x24x2.
Can I trim a 12x24x2 filter to fit?
No. Cutting the frame breaks its seal and exposes the media edge, which invites bypass and can let loose media get pulled into the system.
Is a slightly loose filter better than a tight one?
Neither is good. A loose filter leaves edge gaps, and a tight one bows until it opens the same gaps. The right filter slides in without force and sits flat.
How often should I change an 11.25x23.25x2 filter?
The EPA notes that manufacturers typically recommend replacement every 60 to 90 days. Check it monthly and change it sooner with pets, allergies, or heavy system use.
Where can I buy an 11.25x23.25x2 filter?
Many hardware stores don't stock this non-standard size. Filterbuy makes it in the USA in MERV 8, 11, and 13 and ships within 24 hours. Whichever seller you use, compare the actual size to your slot before you order.
Schedule a Filter Fit Check
Not sure your filter is sealing? Book a filter fit check with your next tune-up, and a technician can confirm the size, check static pressure, and catch bypass damage early. See how often to have your HVAC system serviced to plan your visit.
Glossary
Nominal size: The rounded size on a filter's label, such as 12x24x2. It names the slot, not the frame's exact measurements.
Actual size: The frame's true measured dimensions, usually slightly smaller than nominal.
Air bypass: Air that moves around a filter's edges instead of through its media, usually because of an undersized, bent, or poorly seated filter.
Filterbuy: A U.S.-based air filter manufacturer that makes and ships HVAC and furnace filters in more than 600 standard and custom sizes, including the non-standard 11.25x23.25x2.
